Finished Dumblelator

[UltraHookedOnPhonix]

Heisthl,

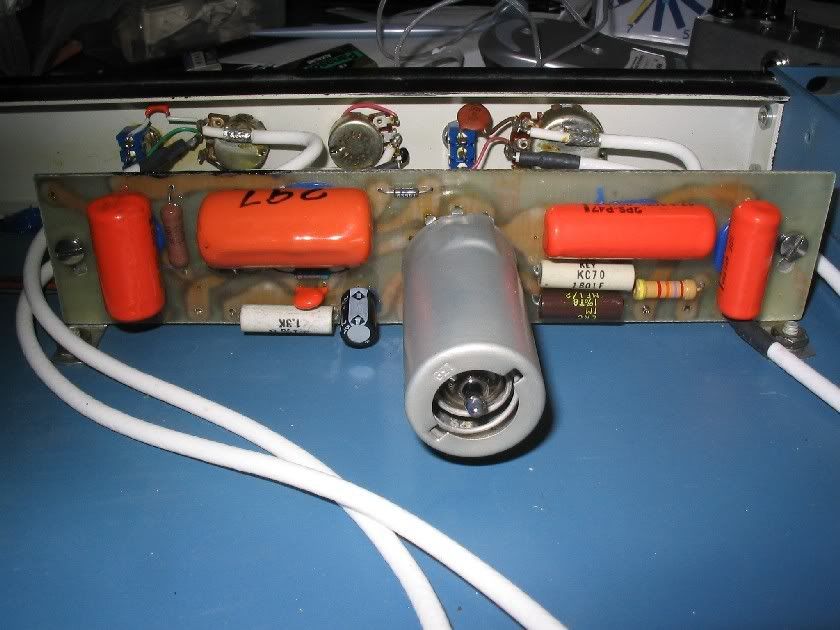

1. I attached a picture of the real deal. It shows a 1.3K resistor (the white one on the left). I used mouser part # 273-1.3K-RC.

[IMG:840:630]http://i205.photobucket.com/albums/bb17 ... Dlator.jpg[/img]

2. I just followed HAD on that one. I went from the pictures that Funk posted in this thread: https://tubeamparchive.com/viewtopic.php?t=3944

[heisthl]

[angelodp]

Thanks Funk, Hesthl, Hooked

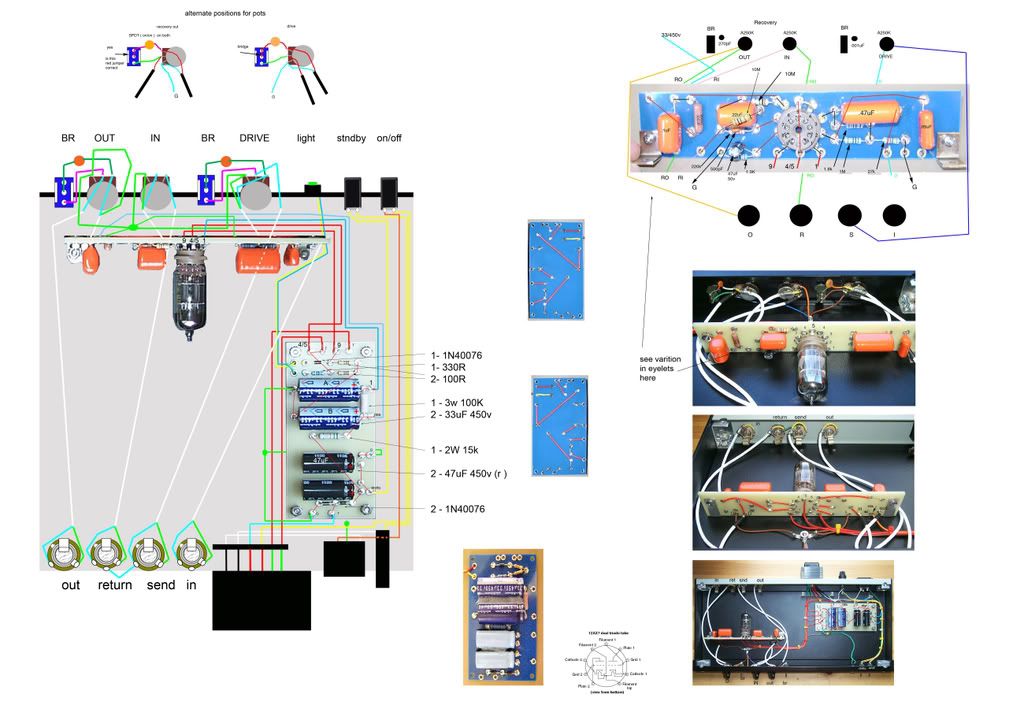

[IMG709]http://i260.photobucket.com/albums/ii9/ ... hic9-1.jpg[/img]




ange

[GatesofDawn67]

UltraHooked,

What a professional job. My stuff always looks like a science fair project.

[talbany]

Ultra

Sweett!!.. Love your work.. Keep it up..

Tony

[UltraHookedOnPhonix]

UltraHooked,

What a professional job. My stuff always looks like a science fair project.

Hey, thanks! Well, if it looks like a science fair project but works rather than looks good and doesn’t (which initially this Dlator didn’t), I’d opt for the former scenario! I remember, I had to chase down a nasty ground loop on this one. Isolating the jacks and grounding them in front of the pots solved it, which seems to be the conventional wisdom on how it’s done around here.

Ultra

Sweett!!.. Love your work.. Keep it up..

Tony

I appreciate it! Thanks. I’m on a building hiatus as of right now. I’m just so happy to be playing my new Bluesmaster so building must wait for the moment. For now, I’ll just kick back a bit and watch all you crystal-lattice-loons have at it (careful though, don’t want to upset those fragile harmonics and all ).
